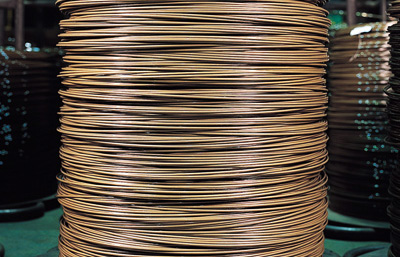

Photographs of Products

Manufacturing Purposes

Description of Product

Superior cold forgeability, malleability, ductility, form rollability and hot forgeability;
application to zipper, drawing, bending, plate, etc.

Use of Product

EDM wire, zipper, rivet, machine part, electrical component, etc.

Size Productible by Product Type

Type Size Productible (in mm)
Round Rod Ф8.9 ~ Ф19.4
Wire Ф0.9 ~ Ф21

Packing Available by Product Dimension

Packing Methods

Carrier Packing: carrier stack + plastic packing
Strawboard Packing: Total or partial strawboard packing
Wood Box Packing: for exportation
Packing Weight
Carrier Packing: 500 kg
Strawboard Packing: 100 kg
Wood Box Packing: 1,000 kg
Extruded Product: 500 kg (1,000 kg in case of exportation)

Extruded Product

PP band

Chemical Composition and Mechanical Properties

Chemical composition

Alloy number Chemical composition, wt.%
KS/JIS UNIS Cu Pb Fe Sn Zn Others
C2700 C27000 63.0-67.0 0.05 0.5 - Rem. -
C2720 C27200 62.0-64.0 0.07 0.07 - Rem. -
C2800 C28000 59.0-63.0 0.1 0.07 - Rem. -

Mechanical Properties

Alloy number Standard number Temper designation Diameter and length between opposite sides Tensile strength(Mpa) Elongation(%) Hardness(HRB)
KS/JIS UNIS
C2700 C2700 KSD5101 1/2H
H
1/2H
H
6~
6~75
6~50
6~20
295
295
355
410
30
40
20
-
-
-
-
-
C2800 C2800 KSD5101 1/2H
H
1/2H
H
6~
6~75
6~50
6~20
315
315
315
450
25
35
15
-
-
-
-
-
